7-Inch 9K Mono LCD
Mars 4 boasts a 7-inch 9K mono LCD that boasts an impressive 8520×4320 resolution and 18μm XY resolution, enabling you to print crisp and intricate models every time with every detail of your model accurately rendered.
Model showcase
Check out these several models from famous artists around the world
What’s Included:
Main Features

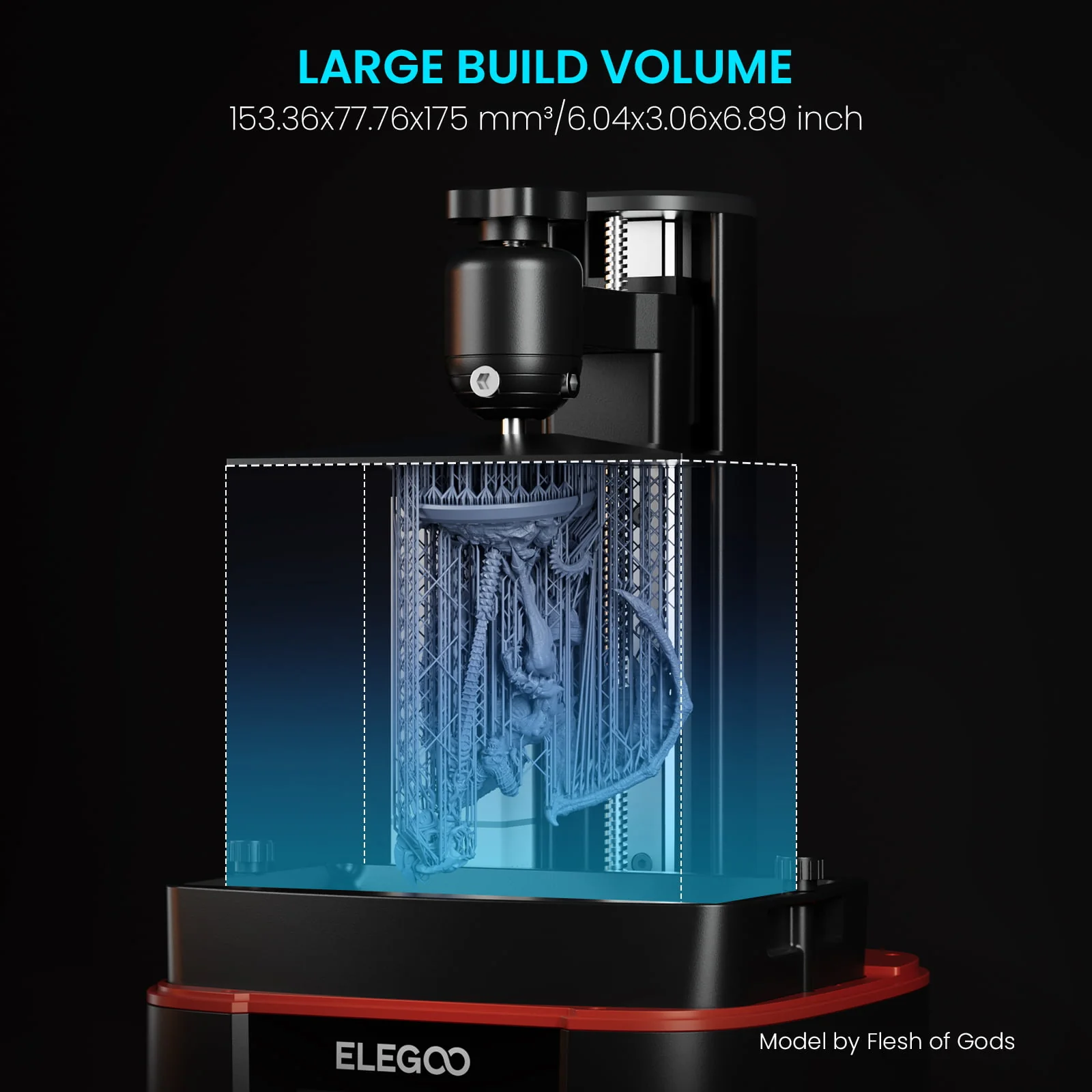

Large Building Volume
The 153.36×77.76×175 mm³/6.04×3.06×6.89 inch build volume provides you with enough space for daily creations without sacrificing printing accuracy.
COB Light Source
The Mars 4 uses a powerful COB light source that uniformly exposes the beam of 405nm wavelength across the entire LCD, ensuring that your prints are consistent and accurate.
User-Friendly UI
The 3.5-inch touch screen comes with a model preview function and a real-time progress bar that allows you to monitor the printing process and make adjustments as needed.

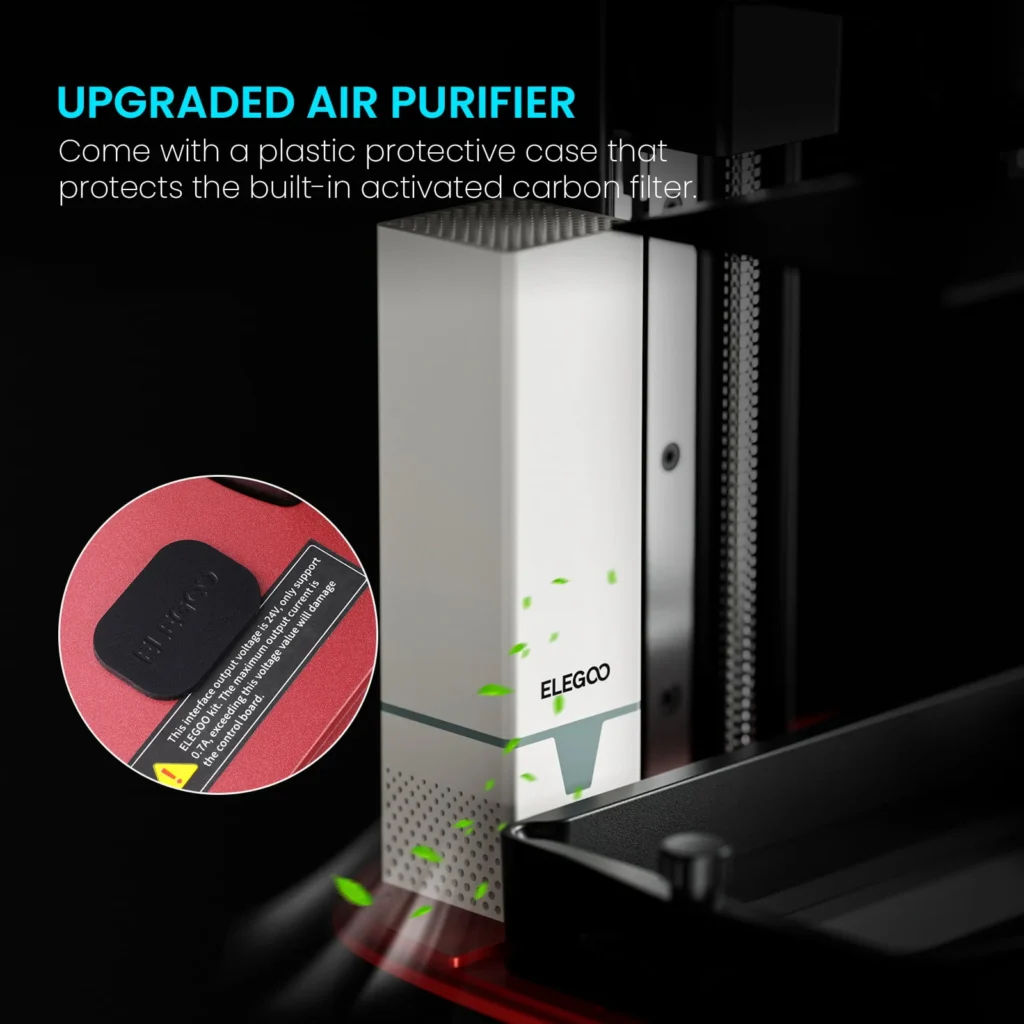

Upgraded Air Purifier
The upgraded plug-in air purifier has a plastic protective case to protect the built-in activated carbon filter, effectively reducing resin odor during printing.
9K Print Quality
The 7-inch 9K monochrome LCD with 8520×4320 resolution and 18×18 microns XY resolution allows you to print models with extremely fine details and sharp edges at a printing speed of up to 70mm/h, achieving superior quality and precision.

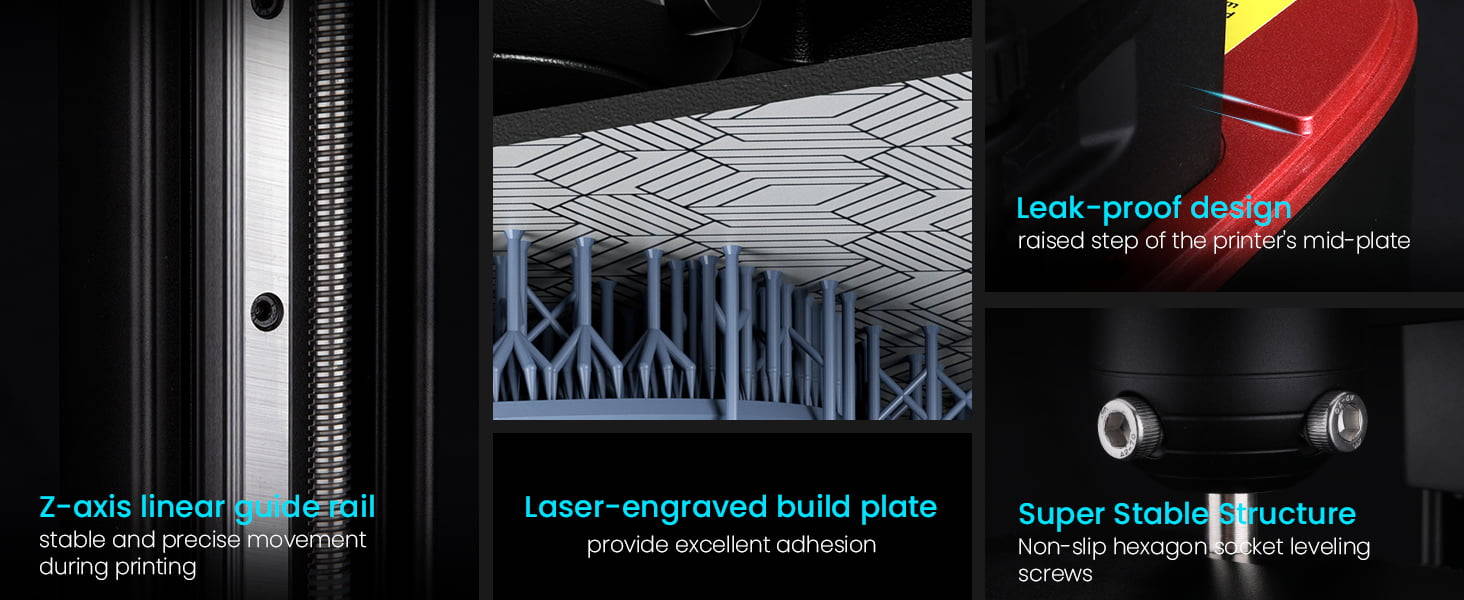

Super Stable Structure
The Z-axis is driven by a linear guide rail that ensures stable and precise movement during printing, effectively reducing the layer texture and making the model surface smoother.
The non-slip hexagon socket leveling screws are simple to handle, making it easy to level the build plate.
The laser-engraved build plate provides excellent adhesion during the printing process and easy to remove printed models.
The printer’s mid-plate is designed with a raised step to prevent resin from flowing inside the printer and causing any damage to the printer’s internal components.
Powerful COB Light Source
Mars 4 adopts a powerful COB light source consisting of 36 LEDs hidden beneath a monochrome LCD that work together to provide a highly uniform UV light beam throughout the build area. The result is your printed models with exceptional precision and smooth surfaces.

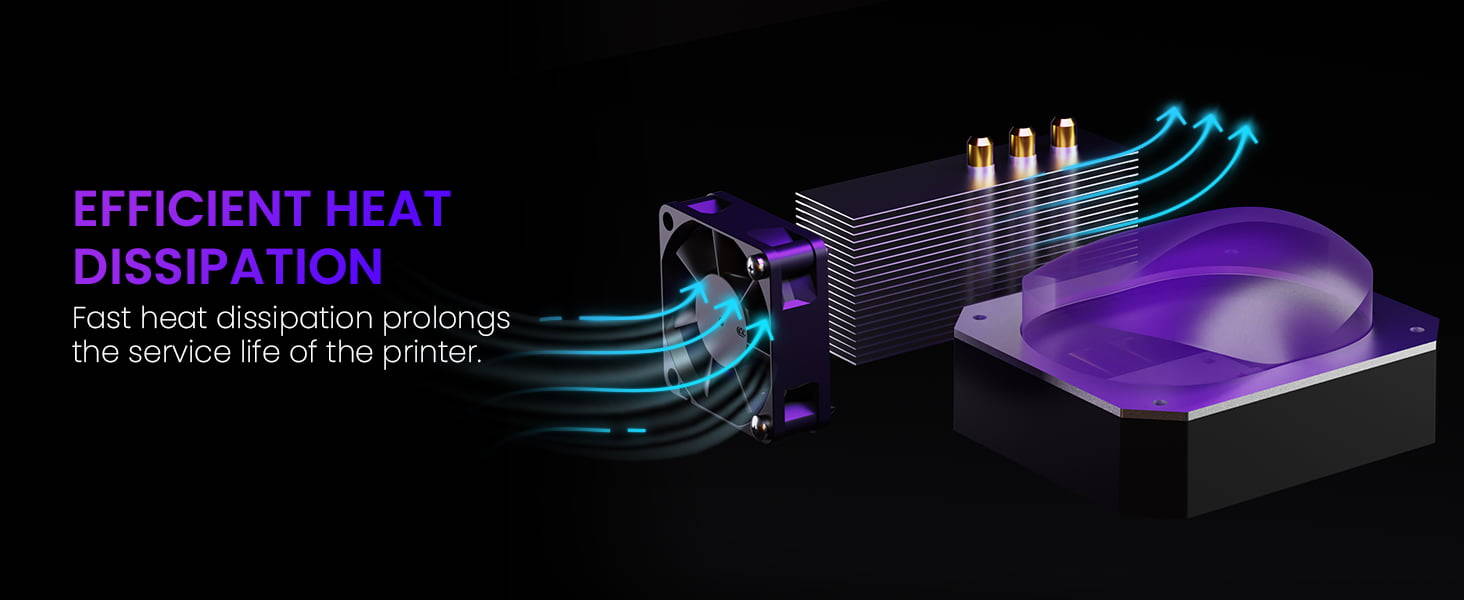

Efficient Heat Dissipation
With a large cooling fan and heat-conducting copper tubes next to the COB light source for fast heat transfer, this ensures efficient heat dissipation performance and prolongs the service life of the printer.
Voxeldance Tango Slicer
Mars 4 uses Voxeldance Tango Slicer, which offers three printing modes of static mode and dynamic mode (including smooth mode and high-speed mode) to improve printing efficiency and optimize your prints for quality and speed, or a balance of both.
The open-sourced GOO slice file is compatible with third-party slicing software, giving you the freedom to choose the best slicing software for your needs.
Tech Specs
- LCD: 7-inch 9K Mono LCD
- System: EL3D-3.0.1
- Slicer Software: ChituBox
- Technology: MSLA 3D Stereo lithography
- Layer Thickness: 0.01-0.2mm
- Printing Speed: 30-70mm/h
- Z Axis Accuracy: 0.02mm
- XY Resolution: 0.018mm(8520*4320)
- Build Volume: 153.36mm(L)*77.76mm(W)*175mm(H)
- Light Source: UV Integrated Light (wavelength 405nm)
- Languages: Chinese English
- Connectivity: USB
- Weight: 11.46lbs(5.2kg)
- Operation: 3.5 Inch Touch Screen
- Power Requirements: 100-240V 50/60Hz 24V 3A
- Printer Dimensions: 22.7cm(L)*22.7cm(W)*43.85cm(H)
